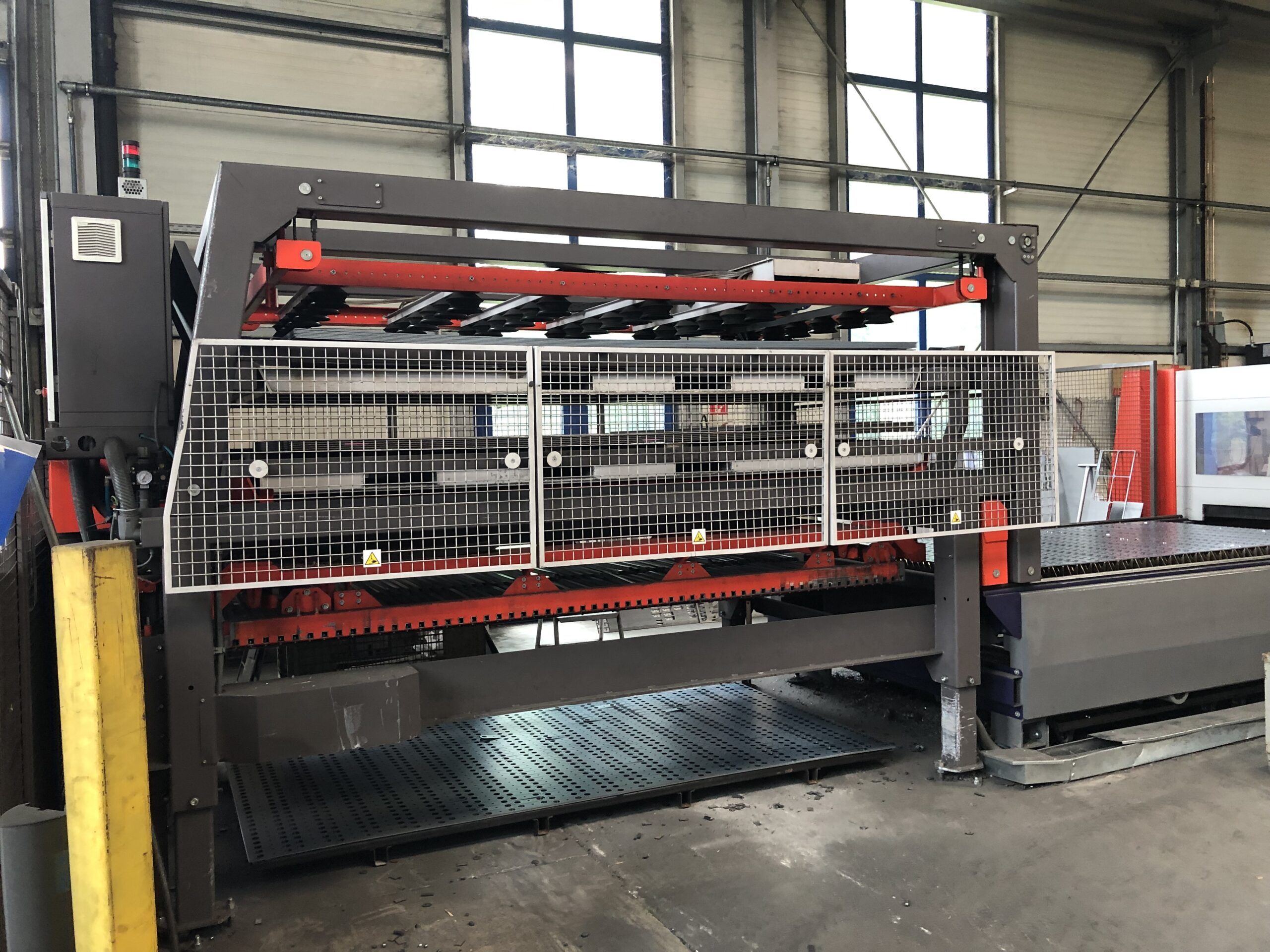

Bystronic ByTrans Extended 3015 2013

Bystronic ByTrans Extended 3015 2013

Bystronic ByTrans Extended 3015

  • Storage of sheet material
  • Automatic loading of the shuttle table
  • Large parts removal
  • Preparing plastic protection plates, which can be placed between the plates by the system

Technical information:

  • Nominal plate size: 3000 × 1500 mm
  • Sheet thickness: 0.8 – 25 mm
  • Maximum sheet weight: 890 kg
  • Number of cassettes: 2
  • Maximum raw material stacking height, inc. pallet: 240mm
  • Maximum stacking weight: 3000kg
  • Maximum stacking height of cut material, inc. pallet: 350mm
Machine overview
Size 3000x1500 mm
Max. sheet size 0.8mm-25mm
Max workpiece weight 890 kg
Maximum raw material stacking height, inc. pallet 240mm
Maximum stacking height of cut material, inc. pallet: 350mm
Maximum stacking weight: 3000kg
Standard cycle time 60 seconds
Weight machine 5000kg

Contact information

Are you interested in this machine or do you have questions? Contact us!

Contact
Nathan van der Hoeven
+31 78 200 3100
Nathan@laserbendingmachines.com

Leave your message here.

    Name*

    Telephone number

    Email address*

    Message

    Availabe in September
    Brand Bystronic
    Type Automation
    Sheet size 3000x1500mm
    Sorting No
    Year 2013
